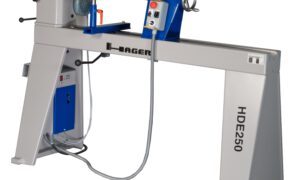

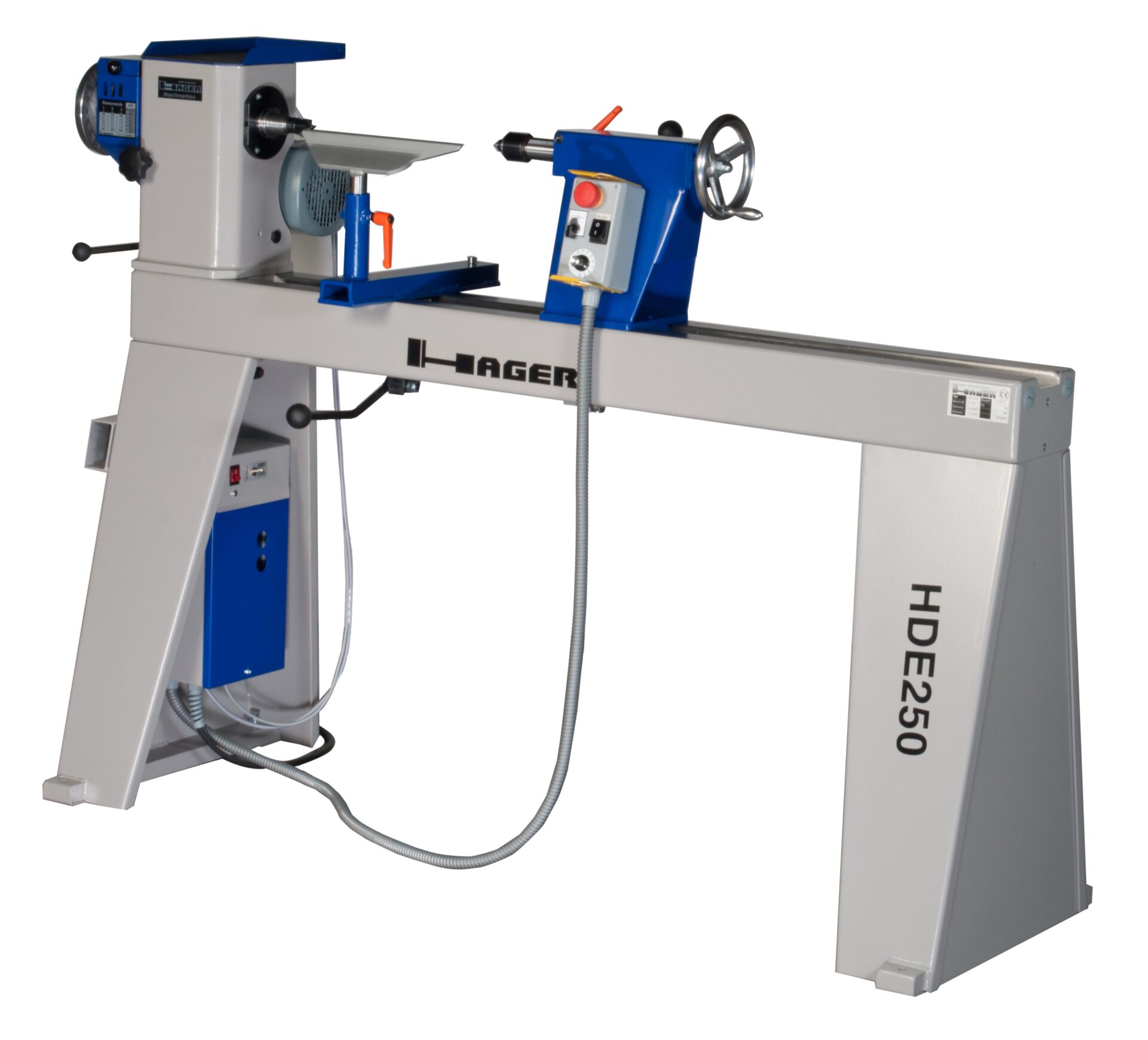

HDE250
HDG250
HDE300ak
KHDE1130a (Shop)
KHDE1800

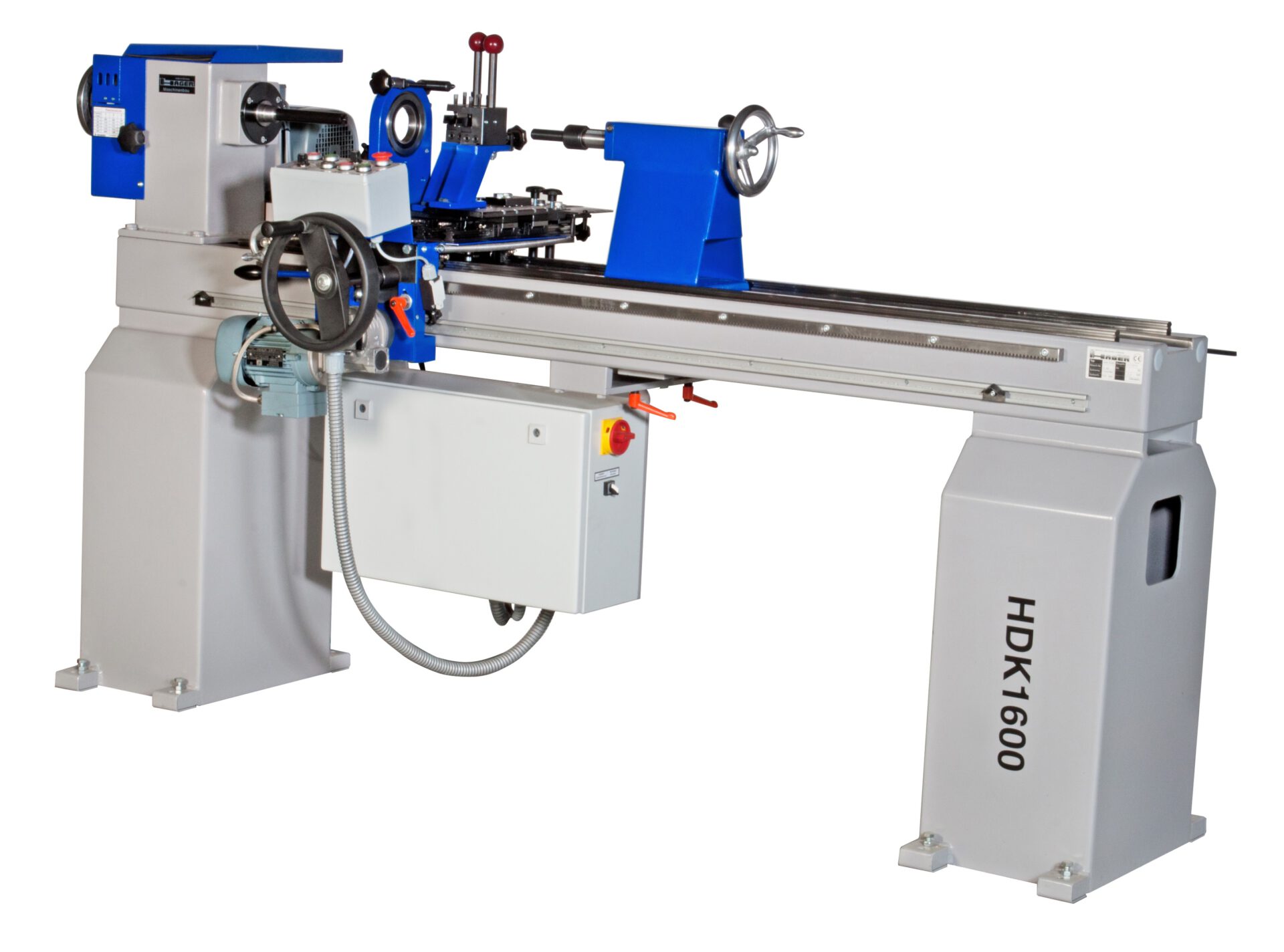

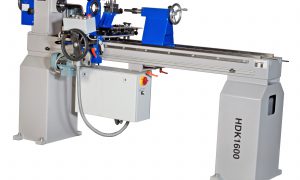

HDK1600
HD300A-CNC
| Complete overview: | STAR 200MAX |
HDE250 | HDG250 |
HDE300 | |||
| Centre height | mm | 200 | 250 | 250 | 300 | ||
| Distance between centres | mm | 640 | 1000 | 1000 | 1000 | ||
| *Max. distance between centres | mm | – | – | – | – | ||
| Power | KW | 1,5 | 1,5 | 2,2 | 2,2 | ||
| Connection | V | 230 | 400 | 400 | 400 | ||
| Drive motor | V | 400 | 400 | 400 | 400 | ||
| Electronics, continuous | yes | yes | yes | yes | |||
| Spindle M33DIN800 | MK2 | MK3 | MK3 | MK3 | |||
| Spindle bore (dia.) | mm | 15 | 20 | 20 | 20 | ||
| Spindle hand wheel | yes | yes | yes | yes | |||
| Min. speed | 1/min. | 300 | 150 | 150 | 100 | ||
| Max. speed | 1/min. | 2500 | 2900 | 2700 | 2700 | ||
| Tailstock centre sleeve travel | mm | 100 | 150 | 150 | 150 | ||
| Tailstock cone | MK2 | MK3 | MK3 | MK3 | |||
| Hand rest upper part | mm | 250 | 300 | 300 | 300 | ||
| Weight | kg | 122 | 233 | 270 | 276 | ||
| Length | mm | 1300 | 1750 | 1800 | 1815 | ||
| Width | mm | 550 | 600 | 640 | 660 | ||
| Rotating headstock | yes | yes | yes | yes | |||
| Underframe | yes | yes | yes | yes | |||
| Outside swivelling column | *option | *option | *option | *option | |||
| Max. rotating (dia.) | mm | 840 | 850 | 1020 | 1110 | ||
| Mobile operation unit | yes | yes | yes | yes | |||
| *Possible at a surcharge | |||||||
| Complete overview: | KHDE1130 | KHDE1800 | |||||
| Centre height | mm | 565 | 900 | ||||
| Distance between centres | mm | 1200 | 1300 | ||||
| *Max. distance between centres | mm | – | 3000 | ||||
| Power | KW | 2,2 | 4 | ||||
| Connection | V | 400 | 400 | ||||
| Drive motor | V | 400 | 400 | ||||
| Electronics, continuous | yes | yes | |||||
| Spindle M33DIN800 | – | M56x2,5 | |||||
| Spindle bore (dia.) | – | – | |||||
| Spindle hand wheel | yes | yes | |||||
| Min. speed | 1/min | 100 | 25 | ||||
| Max. speed | 1/min | 2400 | 1900 | ||||
| Tailstock centre sleeve travel | mm | 150 | 150 | ||||
| Tailstock cone | MK3 | MK4 | |||||
| Hand rest upper part | mm | 400ext. | 400extl. | ||||
| Weight | kg | 305 | 420 | ||||
| Length | mm | 2180 | 3000 | ||||
| Width | mm | 640 | 1000 | ||||
| Rotating headstock | no | no | |||||
| Outside swivelling column | – | – | |||||
| Underframe | ja | ja | |||||
| Max. rotating (dia.) | mm | 1130 | 1800 | ||||
| Mobile operation unit | yes | yes | |||||
| *Possible at a surcharge | |||||||
| Duplicating | |
| LP320-F | Longitudinal and flat duplicating unit For short parts, e.g. pepper mills or bowls and plates – fits any turning lathe – to insert into the hand rest. Main advantage: handy, flexible, easy installation and removal |
| LP520-F | Longitudinal and flat duplicating unit with special substructure – travel 520 mm |
| HL100Z | Longitudinal duplicating unit With its special support arm, the duplicating unit fits each turning lathe – rack-and-pinion drive with gear reduction – ball guide without play |
| HLK800 | Assembly device for copying. With the addition of HWK800 for winching and fluting. Travel path optionally 800mm or 1200mm. |
| HDU300-CNC | Duplicating turning lathe Each movement is controlled by stepping motors and ball screw spindles. Programming and working is done on the computer |
| EXCELLENCE 2000 |
CNC-fully automatic wood lathe Each movement is controlled by stepping motors and ball screw spindles. Programming and working is done on the computer |
